|Place of Origin:||China|
|Minimum Order Quantity:||1kpcs|
|Packaging Details:||Tray/Tube Packaging|
|Delivery Time:||7 to 15 Working days|
|Payment Terms:||T/T, Western Union|
|Type:||Free Hanging||Current Rating:||1AMP|
|Pitch:||2.54mm||Insulator Material:||PBT+30% GF|
|Packing:||Tube/Tray||Termination:||Crimp With Flat Ribbon Cable|
idc socket connector,
idc header connector

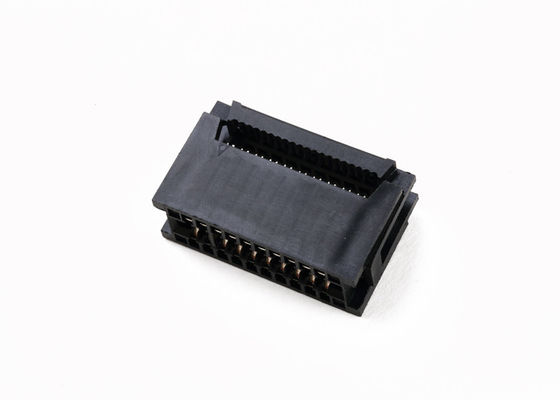

2.54 mm Card Edge IDC Cable Connector Black PBT Material Terminal With Gold
|Products Name||IDC Connector/Rectangular Connector|
|Number of Row||Dual Row|
|Contact Type||Female Sokcet|
|Contact Finsh||Gold over Ni|
|Wire Type||Ribbon Cable|
|Features||Feed Trhough,Polarizing Key|
|Pins Available||10Pins to 64Pins|
|Mounting Type||Free Hanging(In-Line)|
|Current Rating||1.0 AMP|
|Voltage Rating||250 V AC/DC|
|Temperature Range||-40°C to +105°C|
|Contact Resistance||20mΩ Min|
|Insulation Resistance||1000MΩ Min|
|Withstanding Voltage||500 V AC/Min|
What's IDC Cable Connector:
IDC Cable Connector called insulation-displacement contact is is an electrical connector designed to be connected to the conductor(s) of an insulated cable by a connection process which forces a selectively sharpened blade or blades through the insulation, bypassing the need to strip the conductors of insulation before connecting. When properly made, the connector blade cold-welds to the conductor, making a theoretically reliable gas-tight connection.
Why Choose CNJWY
Research and Development Capability:
Strong research and development capability on product designing and mould developing makes CNJWY able to evaluate the new product,which could help clients save the time cost.
CNJWY has our own assembly lines from electroplating,stamping,moulding,injection and packaging.
Strictly following the demands of ISO9001-2015,CNJWY is able to produce products of highest quality.
More than 10 years of producing experience,CNJWY is always specializing in improving the production capacity.Competitiveness provides competitive price for the valued customers.
1. Are you a Facotry?
Yes, We are the one of largest connector manufacturer local in Shenzhen,China.We warmly welcome you visit our facotry.
2. How to get a free sample to check the quality?
We ususlly offer within 20pcs samples, but freight should be coolected
3. When can I get a quotation of cable assembly?
There are two differents way to get a quote, one is online inquiry, one is email us.We'll detail with your inquirys within 12hours.
4. What about the lead time for mass production?
It depend on order quantity. Generally speaking, We'll finish your order within 2weeks. Urgent part will delivery in one week.
Scope of Production:
IDC Cable Connector widely used in different industry such as automotive, medical equipment, computer and so on. as below image is application scenarios. image is limitation ,for more detail you can directly contact with our sales team
