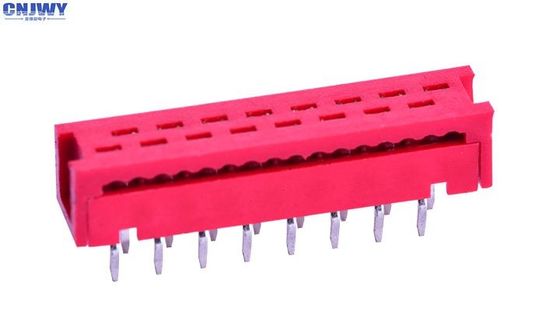

DIP Type Micro Match Connector , Tin Plated Idc Ribbon Cable Connectors

DIP Type Micro Match Connector , Tin Plated Idc Ribbon Cable Connectors

  • DIP Type Micro Match Connector , Tin Plated Idc Ribbon Cable Connectors
  • DIP Type Micro Match Connector , Tin Plated Idc Ribbon Cable Connectors
DIP Type Micro Match Connector , Tin Plated Idc Ribbon Cable Connectors
Product Details:
Place of Origin: China
Brand Name: JWY
Certification: UL/ROHs/SGS/REACH
Model Number: RE254-XXXXXX
Payment & Shipping Terms:
Minimum Order Quantity: 1kpcs
Price: Negotiation
Packaging Details: Tray/Tube Packaging
Delivery Time: 7 to 15 Working days
Payment Terms: T/T, Western Union
Supply Ability: 1000000PCS
Contact Now
Detailed Product Description
Port: Shenzhen Current Rating: 1.0AMP
Pitch: 2.54mm Insulator Material: PBT
Packing: Tube Service: OEM/ODM
High Light:

idc socket connector


flex ribbon cable connector

1.27 mm Micro Match IDC Cable Connector Red Color DIP Type Tin Plated


Quick Details:

Products Name IDC Connector/Rectangular Connector
Pitch 2.00mm(0.079'')
Number of Row Dual Row
Contact Type Female Sokcet
Contact Finsh Tin over Ni
Wire Type Ribbon Cable
Features Feed Trhough,Polarizing Key
Color Red
Pins Available 6Pins to 34Pins
Mounting Type Free Hanging(In-Line)
Color Black
Current Rating 1.0 AMP
Voltage Rating 250 V AC/DC
Temperature Range -40°C to +105°C
Contact Resistance 20mΩ Min
Insulation Resistance 1000MΩ Min
Withstanding Voltage 500 V AC/Min
Packaging Tray/Tube


What's the Mirco Match IDC Connector


A contact concept that inspires. The Micro-MaTch contact concept is essentially different from other systems available. By its design, the traditional failure mode in tinplated connections, fretting corrosion, is prevented. The separation of the two basic functions of the contact system (contact force generation and wire termination), enables the optimization of both functions and leads to relatively simple contact shapes. The Micro-MaTch contact helps prevent fretting corrosion, the traditional failure mode in tin-plated connections. Relative movements caused by vibrations/thermal expansion can be prevented so that a gas tight connection can make the Micro-MaTch contact spring system fretting corrosion resistant.
A more economical design that meets the needs of less demanding applications. The Micro-MaTch Value-line is the latest addition to the well-established Micro-MaTch connector family. This new series features a more economical design and meets the needs of less demanding applications in the Industrial, Consumer and Datacom industry. The Micro-MaTch Value-line is built around the existing high quality Micro-MaTch connector system and has been developed to suit environments where a broad temperature range, many mating cycles and vibration resistance are less relevant. On a pitch of 1.27mm, Micro-Match Value-line offers a variety of wire-to-board inter-connections.




Why Choose CNJWY


Research and Development Capability:

Strong research and development capability on product designing and mould developing makes CNJWY able to evaluate the new product,which could help clients save the time cost.


OEM/ODM Producing

CNJWY has our own assembly lines from electroplating,stamping,moulding,injection and packaging.


Quality Guarantee

Strictly following the demands of ISO9001-2015,CNJWY is able to produce products of highest quality.


Competitive Price

More than 10 years of producing experience,CNJWY is always specializing in improving the production capacity.Competitiveness provides competitive price for the valued customers.



1. Are you a Facotry?

Yes, We are the one of largest connector manufacturer local in Shenzhen,China.We warmly welcome you visit our facotry.

2. How to get a free sample to check the quality?

We ususlly offer within 20pcs samples, but freight should be coolected

3. When can I get a quotation of cable assembly?

There are two differents way to get a quote, one is online inquiry, one is email us.We'll detail with your inquirys within 12hours.

4. What about the lead time for mass production?

It depend on order quantity. Generally speaking, We'll finish your order within 2weeks. Urgent part will delivery in one week.


Scope of Application:

IDC Cable Connector widely used in different industry such as automotive, medical equipment, computer and so on. as below image is application scenarios. image is limitation ,for more detail you can directly contact with our sales team.

DIP Type Micro Match Connector , Tin Plated Idc Ribbon Cable Connectors 0
