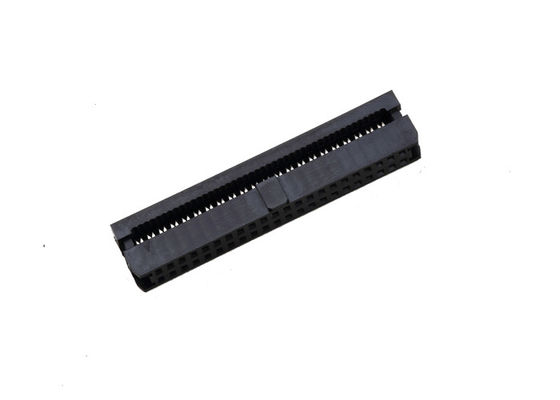

Automotive Electrical IDC Cable Connector 1.27mm Pitch Insulation Resistance

Automotive Electrical IDC Cable Connector 1.27mm Pitch Insulation Resistance

  • Automotive Electrical IDC Cable Connector 1.27mm Pitch Insulation Resistance
  • Automotive Electrical IDC Cable Connector 1.27mm Pitch Insulation Resistance
Automotive Electrical IDC Cable Connector 1.27mm Pitch Insulation Resistance
Product Details:
Place of Origin: China
Brand Name: JWY
Certification: UL/ROHs/SGS/REACH
Model Number: RE254-XXXXXX
Payment & Shipping Terms:
Minimum Order Quantity: 1kpcs
Price: Negotiation
Packaging Details: Tray/Tube Packaging
Delivery Time: 7 to 15 Working days
Payment Terms: T/T, Western Union
Supply Ability: 1000000PCS
Contact Now
Detailed Product Description
Port: Shenzhen Current Rating: 1AMP
Pitch: 1.27mm Insulator Material: PBT
Packing: Tube Service: OEM/ODM
High Light:

idc socket connector

,

idc header connector

Signal Transmission Dual Row IDC Cable Connector 1.27 Pitch Black Color



Quick Details

Products Name IDC Connector/Rectangular Connector
Pitch 1.27mm(0.05'')
Number of Row Dual Row
Contact Type Female Sokcet
Contact Finsh Gold over Ni
Wire Type Ribbon Cable
Features Feed Trhough,Polarizing Key
Color Black
Pins Available 6Pins to 80Pins
Mounting Type Free Hanging(In-Line)
Color Black
Current Rating 1.0 AMP
Voltage Rating 250 V AC/DC
Temperature Range -40°C to +105°C
Contact Resistance 20mΩ Min
Insulation Resistance 1000MΩ Min
Withstanding Voltage 500 V AC/Min
Packaging Tray/Tube



What's IDC Cable Connector:



IDC Cable Connector called insulation-displacement contact is is an electrical connector designed to be connected to the conductor(s) of an insulated cable by a connection process which forces a selectively sharpened blade or blades through the insulation, bypassing the need to strip the conductors of insulation before connecting. When properly made, the connector blade cold-welds to the conductor, making a theoretically reliable gas-tight connection.





Why Choose CNJWY



Research and Development Capability:

Strong research and development capability on product designing and mould developing makes CNJWY able to evaluate the new product,which could help clients save the time cost.



OEM/ODM Producing

CNJWY has our own assembly lines from electroplating,stamping,moulding,injection and packaging.



Quality Guarantee

Strictly following the demands of ISO9001-2015,CNJWY is able to produce products of highest quality.



Competitive Price

More than 10 years of producing experience,CNJWY is always specializing in improving the production capacity.Competitiveness provides competitive price for the valued customers.



FAQ:

1. Are you a Facotry?

Yes, We are the one of largest connector manufacturer local in Shenzhen,China.We warmly welcome you visit our facotry.

2. How to get a free sample to check the quality?

We ususlly offer within 20pcs samples, but freight should be coolected

3. When can I get a quotation of cable assembly?

There are two differents way to get a quote, one is online inquiry, one is email us.We'll detail with your inquirys within 12hours.

4. What about the lead time for mass production?

It depend on order quantity. Generally speaking, We'll finish your order within 2weeks. Urgent part will delivery in one week.



Scope of Production:

IDC Cable Connector widely used in different industry such as automotive, medical equipment, computer and so on. as below image is application scenarios. image is limitation ,for more detail you can directly contact with our sales team.
